615008137421
Manufacturer:
Wurth Electronics
Mfr.Part #:
615008137421
Datasheet:
Description:

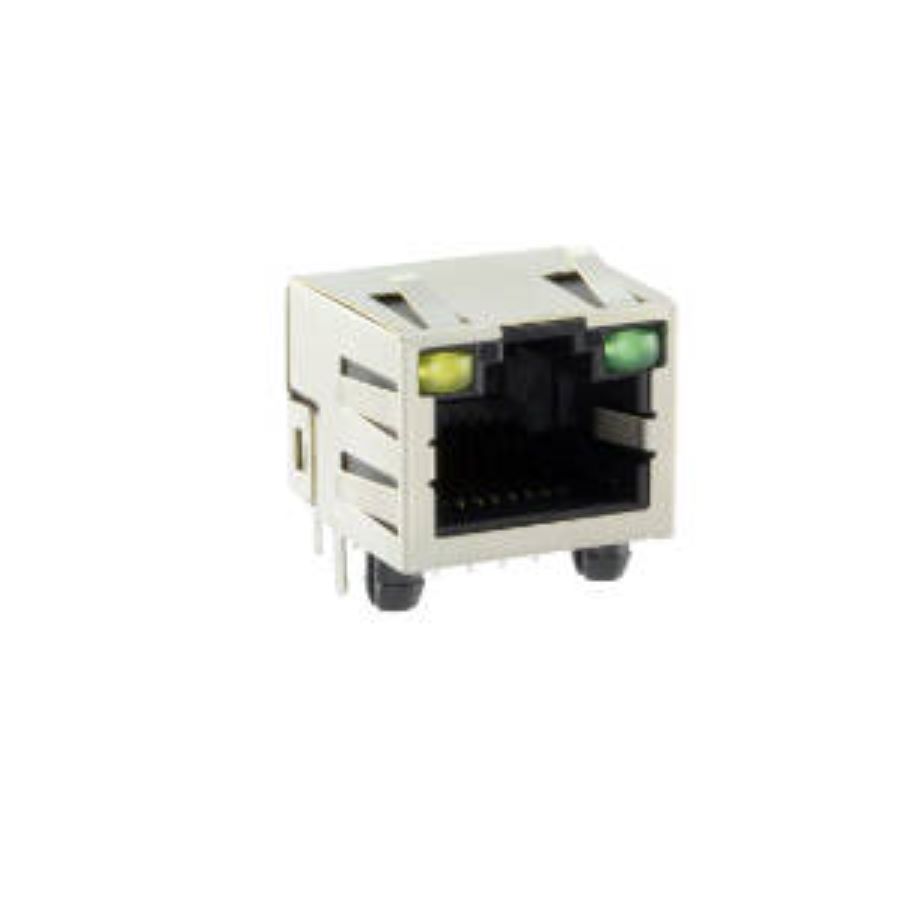

Modular / Ethernet Connectors Through Hole RJ45 Female Current Rating:1.5 A Voltage Rating:120 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 120 V |
| Length | 13.46 mm |
| Width | 16.25 mm |
| Termination | Through Hole |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 120 V |
| Height | 13.5 mm |
| Packaging | Tray |
| Voltage Rating | 120 V |
| Depth | 15.75 mm |
| RoHS | Compliant |
| Insulation Resistance | 500 MΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin, Gold |
| Contact Material(Contact Finish) | Gold |
| Current Rating | 1.5 A |
| Flammability Rating | UL94V-0 |
| Orientation | Right Angle |
| Operating Supply Voltage | 120 V |
| Color | Black |
| Gender | Female |
| Shielding | Shielded |
| Number of Contacts | 8 |
| Direction(Counting Sequence) | Up |
| Connector Type | RJ45, Socket |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Housing Material | PBT |
| Number of Ports | 1 |
| Contact Resistance | 20 mΩ |
| Mounting Angle | Right Angle |
| Performance Category | Cat 5 |
| Accessory Type | |
| USOC Codes | RJ45 |
| Number of Positions/Contacts | 8P8C |
Stock: 646
Distributors
pcbx
pcbxUnit Price$1.60813
Ext.Price$1.60813
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.60813 | $1.60813 |
| 10 | $1.57734 | $15.77340 |
| 25 | $1.52806 | $38.20150 |
| 50 | $1.48032 | $74.01600 |
| 100 | $1.43407 | $143.40700 |
| 300 | $1.38926 | $416.77800 |
